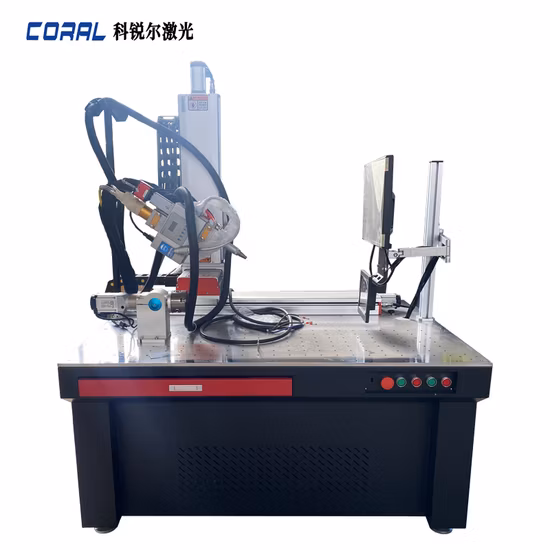

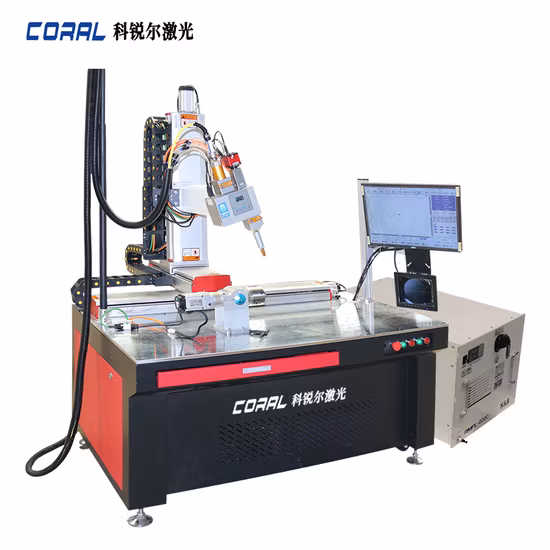

Sample Customization 1000/1500/2000/3000W Customized Fast Platform and Handheld Fiber Laser Welding Machine for Jam/Seal/Spot All Metals and Rare Metals

Sample Customization 1000/1500/2000/3000W Customized Fast Platform and Handheld Fiber Laser Welding Machine for Jam/Seal/Spot All Metals and Rare Metals

Overview Handheld Fiber Laser Welding Machine With Auto Wire Feeding SystemProduct Description The laser welding machine
Basic Info
Model NO. SJ-laser
Technical Class Continuous Wave Laser
Control Manual
Power Density Deep Fusion Welding
Laser Classification Optical Fiber Laser
Type Portable Welding Machine
Application Material Stainless Steel, Carbon Steel Aluminum
Overall Power Comsumption <=2kw, 3kw, 4 Kw
Power Instability <3%
Transport Package Wooden Box
Specification 1200*600*1046
Trademark saijia laser
Origin Jiangsu Suzhou
HS Code 8515809090
Production Capacity 200 Pieces/Month
Product Description
Handheld Fiber Laser Welding Machine With Auto Wire Feeding SystemProduct Description

The laser welding machine employs high-octane laser pulse to heat one particular area of tiny areas on a work material. The powerful energy of laser radiation diffuses into materials' internal parts through heat conduction, and then the melting material will form a specific molten bath to facilitate the laser welding.

Advantages of handheld laser welding machine:
A. Easy to handle and don't need the professional welder.B. 8-15m fiber wire, Can weld long-distance and large-area parts.C. High quality and stable: lifespan to 100000 hours and free of maintance.D. High efficiency: more than 5 times of the TIG welding with low energy consumption.E. Various welding proceses: jam welding, seal welding, spot welding, stitch welding and overlap welding .F. Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated weldingH. Low cost, no consumables, energy saving and enviroment protection.I. With the auto wire feeding, IT cover more wide gap and enlarge the application.Detailed PhotosApplication

Used in photoelectric communication devices, medical treatment, electronics, batteries, polar ears, optical fiber coupling devices, picture tube electron guns, metal parts, mobile phone vibration motors, precision parts of clocks and watchesAutomobile steel sheet, optical communication industry, precision welding of copper and aluminum parts.

Specification
ItemsParameter
Equipment NameHandhld fiber laser welding machine
Laser Power500W,800W,1000W,2000W,3000W
Laser Wavelength1070 NM
Fiber LengthStandard 10M Maximum 15M
Work WayContinuously modulated
Water ChillerIndustrial thermostatic water tank
Working Environment Temperature15~35 ºC
Working Environment Humidity-17%without condensation
Suggested Welding Thickness0.5-5mm (depends on the materials)
Welding gap requirement≤0.5mm
Working Voltage220V/380V 50Hz
Dimension1200mm*600mm*1046mm
Total Weight240kg

Welding penetration data (wobble welding head):
PowerStainless SteelCarbon SteelGalvanized plate
500W 0.5-0.8mm 0.5-0.8mm 0.5-0.8mm
800W 0.5-1.2mm 0.5-1.2mm 0.5-1.0mm
1000W 0.5-1.5mm 0.5-1.5mm 0.5-1.2mm
2000W 0.5-3mm 0.5-3mm 0.5-2.5mm
Water-cooled handheld laser welding machine:Most sales in the market are dominated by water-cooled hand-held welding. Water-cooled hand-held welding uses water as thecooling medium. Our company sells water-cooled welding machines with different powers such as 500W, 800W, 1000W, 1500W, 2000W, 3000W, etc. And hand-held welding focuses on three models: 1000W, 1500W, and 2000W.
Water-cooled handheld welding machine features: built-in dual-temperature dual-control industrial chiller, constant temperature
regulation and heat dissipation, to ensure the heat dissipation of the core optical circuit components. With fiber laser, stable and efficientPackaging & Shipping Service

1. 1 year Guarantee for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. Provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT Assurance payment
8. Shipping By air, DHL, Sea.

About Our Factory

Sample Customization 1000/1500/2000/3000W Customized Fast Platform and Handheld Fiber Laser Welding Machine for Jam/Seal/Spot All Metals and Rare Metals

Cooperative enterpriseFAQ

Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?For the standard machine, the delivery time is 3-7 days after the payment.For the non-standard machine, the delivery time is 7-15 days after the payment.Q3. How to install and use it?We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.Q4. How to do it if we meet the issue during the operation?You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.Q5. If we want to learn how to operate the machine, Can you provide it?Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
