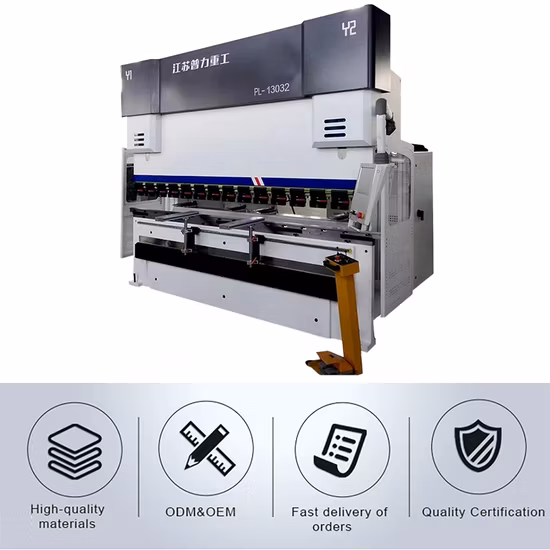

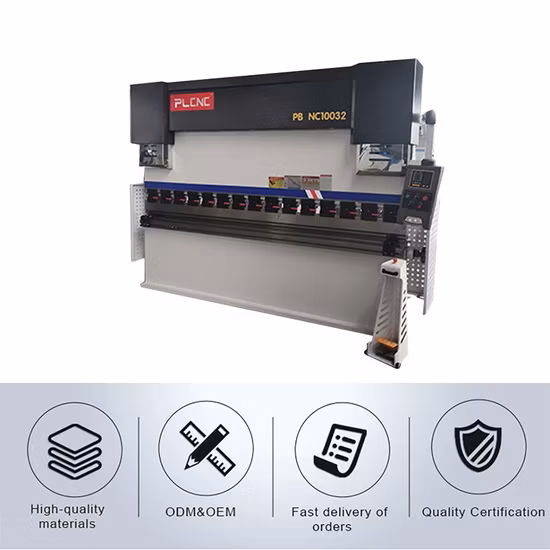

CNC Hydraulic Servo Hydraulic Stainless Steel Iron Steel Plate Nc Press Brake Bending Folding Machine

Basic Info

Model NO.	PSH
Waterproof Rating	IPX-8
Warranty	1-year
Condition	New
Certification	RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation	Automatic
Suitable for	Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type	Press Brake
Transport Package	Plastic Film, Wooden Package, or as Requirement.
Specification	3690*1750*1680
Trademark	Durmark
Origin	Anhui, China
HS Code	8462219000
Production Capacity	60sets/Month

Product Description

PSH cnc hydraulic servo hydraulic iron steel press brake

Technical parameter

No	WE67K-40T/2500	Value	Unit
1	Normal pressure	400	KN
2	Worktable length	2500	mm
3	Distance between holes	1850	mm
4	Depth of throat	230	mm
5	Ram travel	100	mm
6	Max opening height	320	mm
7	Main power	5.5	KW
8	Weight	3000	KG
9	Dimension	2500*1200*1910	mm

Main Features

1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding machine frame after a one-time process, so slider ,worktable have less deformation of the work piece while bending, and the final product have excellent straightness and angle consistency.3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the mechanical stopper mechanism, stable and reliable.4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system. Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast, accurately positioning data.

5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending programs,each consists of a plurality of machining step programming.6. Front feeding device moves lateral through precision linear guide, easily control the spacing between the arms.7. Adjustable height level, which greatly improves the convenience of the work piece bending.8. With fast clamp pallet bending mold, compatible with deflection compensation mechanism, in order to guarantee high bending accuracy (To improve the accuracy , Hydraulic convex compensation table or Inclined wedge machine workbench compensation can be optional)

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working

Detailed Image

ApplicationOur service

Pre-sales Service:

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service:

1. Training how to install the machine .2. Training how to use the machine .3. Warranty 1 year.4. Engineers available to service machinery oversea .

Our CustomerPackage and shipping
1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
3)we fixed our machine in container by steel wire inside which will be protected well during shipping
4)unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.
Our Workshop
Lifu Machinery is a professional manufacturer of CNC sheet metal. We focus on R&D and have advanced
production equipment as the backing, first-class testing equipment as the cornerstone of the international
quality system as the stand to produce high-quality products.
FAQ

1. How about your machine quality? We are worry about the quality.
   RE: DURMARK is a mature brand in CHINA,through many years research in technology,
   our design including structure and detailed sercurity and precision has enhanced greatly,
   and can match all the CE standard or more strict standard.Our machines distribute worldwide
   to about 50 countries where there are metal plate industry ,there are Brillante machines.
   And where there are our machines,there are good reputation and terminal user satisfaction

   2. Whether the machine price can be more discount?
   RE: 1.DURMARK always provide high quality machine, with 10years experiences,
   our machine has enough qaulity standard to make sure the machine can work more than
   the real warranty period. In this way ,we will save a lot and think in advance for the clients.
   RE: 2. Actually DURMARK also think about our price level,we are sure to provide
   quality=price and pice=quality ,the matched price and acceptable for the clients and durable
   for our machines. We welcome you negotiate with us and get a good satisfaction.

   3. How about your manufactory in China?
   RE: DURMARK located in Ma'anShan City, AnHui province which is the leading area in China
   and also in the worldwide as the center of the metal plate solution machines,We have worked
   about 10 years in this area.Rich experiences in this field with professional technical supporting
   and oriented service.
